Hey there! As a tube bending supplier, I'm super stoked to share with you how rotary draw tube bending works. It's a pretty cool process that plays a huge role in various industries, from automotive to furniture manufacturing. So, let's dive right in!
The Basics of Rotary Draw Tube Bending
First off, what exactly is rotary draw tube bending? Well, it's a method used to bend tubes or pipes into specific shapes and angles. Unlike some other bending techniques, rotary draw tube bending offers a high level of precision and can produce tight radius bends.
The main components of a rotary draw tube bending machine include a bend die, a clamp die, a pressure die, and a wiper die. These dies work together to ensure that the tube is bent smoothly and accurately.
Step-by-Step Process
Let's break down the rotary draw tube bending process into steps:
Step 1: Preparation
Before we start bending, we need to prepare the tube. This involves cutting the tube to the right length and making sure it's clean and free of any debris. We also need to select the appropriate dies for the job. The bend die, for example, is designed to match the desired bend radius of the tube.
Step 2: Loading the Tube
Once the tube is ready, we load it onto the bending machine. The tube is placed between the clamp die and the bend die. The clamp die holds the tube in place, while the bend die provides the shape for the bend.
Step 3: Bending
Now comes the fun part - the actual bending! The pressure die applies force to the tube, pushing it against the bend die. As the tube is pushed, it starts to bend around the bend die. The wiper die helps to prevent wrinkling and distortion on the inside of the bend.
Step 4: Unloading the Tube
After the bend is complete, we unload the tube from the machine. The tube is then inspected to make sure it meets the required specifications. If necessary, we can make any adjustments or perform additional bending operations.
Advantages of Rotary Draw Tube Bending
So, why is rotary draw tube bending such a popular choice? Here are some of the key advantages:
- Precision: Rotary draw tube bending allows for very precise bends, with tight tolerances. This is important in applications where accuracy is crucial, such as in the aerospace or medical industries.
- Smooth Bends: The use of dies helps to ensure that the bends are smooth and free of wrinkles or kinks. This results in a high-quality finished product.
- Tight Radius Bends: Rotary draw tube bending can produce tight radius bends, which is not always possible with other bending methods. This makes it ideal for applications where space is limited.
- Versatility: Rotary draw tube bending can be used to bend a wide variety of materials, including steel, aluminum, copper, and stainless steel. It can also be used to create different types of bends, such as single bends, multiple bends, and compound bends.
Applications of Rotary Draw Tube Bending
Rotary draw tube bending is used in a wide range of industries and applications. Here are some examples:
- Automotive: In the automotive industry, rotary draw tube bending is used to make exhaust systems, roll cages, and other components.
- Furniture: Furniture manufacturers use rotary draw tube bending to create frames for chairs, tables, and other pieces of furniture.
- Aerospace: The aerospace industry relies on rotary draw tube bending to make components for aircraft engines, wings, and landing gear.
- Medical: In the medical field, rotary draw tube bending is used to make surgical instruments, medical devices, and tubing for medical equipment.
Our Services as a Tube Bending Supplier
As a tube bending supplier, we offer a wide range of services to meet the needs of our customers. We have state-of-the-art rotary draw tube bending machines that can handle tubes of various sizes and materials. Our experienced technicians are trained to ensure that every bend is precise and of the highest quality.

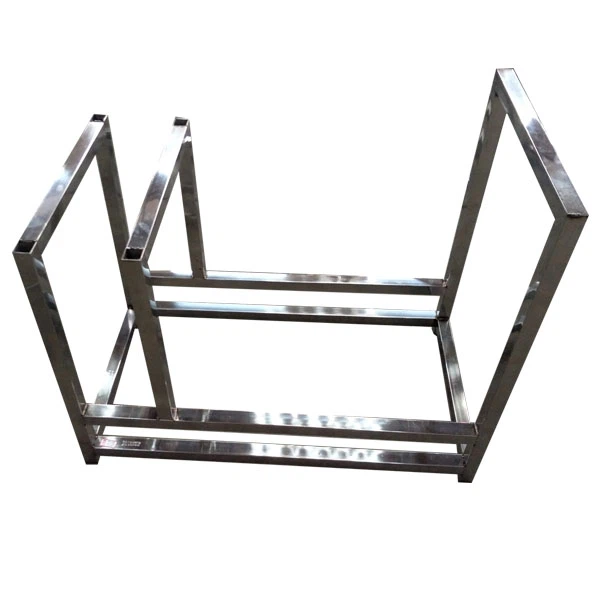

In addition to tube bending, we also offer other services such as Precision Powder Coated Laser Cut Fabrication Pipe Customized, Precision Welding Pipe Bending Service for Hose Reel with Black Powder Coating, and Direct Factory Custom Tube Processing Steel Pipe Fabrication. These services allow us to provide our customers with a complete solution for their tube fabrication needs.
Why Choose Us?
There are several reasons why you should choose us as your tube bending supplier:
- Quality: We are committed to providing the highest quality products and services. We use only the best materials and the latest technology to ensure that our bends are accurate and of the highest quality.
- Experience: Our team has years of experience in the tube bending industry. We have worked with a wide range of customers and have the expertise to handle even the most complex bending projects.
- Customer Service: We believe in providing excellent customer service. We work closely with our customers to understand their needs and to provide them with the best possible solution.
- Competitive Pricing: We offer competitive pricing without compromising on quality. We understand that cost is an important factor for our customers, and we strive to provide the best value for their money.
Contact Us for Your Tube Bending Needs
If you're in need of tube bending services, we'd love to hear from you. Whether you have a small project or a large-scale production run, we have the capabilities to meet your needs. Contact us today to discuss your project and to get a quote.
We look forward to working with you and helping you bring your tube bending projects to life!
References
- ASME B31.3 Process Piping Code
- ASTM Standards for Pipe and Tube Materials
